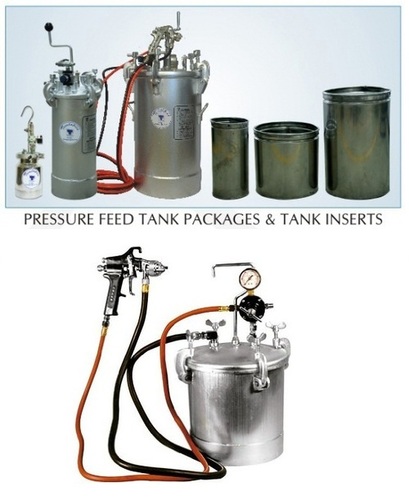

Painting Equipment

Painting Equipment
Painting Equipment
Product Code : 18
Product Description

Being an ISO certified manufacturer and supplier, we are offering an unmatched range of Painting Equipment. These equipments are used in different industries like metal fabrication, automotive and engineering for paining metal objects. Our Painting Equipment is precisely designed at our state of the art machining facility by using quality materials procured from authentic vendors of the market. Moreover, our clients have the advantage to customize these equipments as per their demands.

Features:

  • High pressure paint spraying
  • Rugged design
  • Maintenance free
Item Code: 125

Features
  • Precision air and fluid adjustments
  • Air cops & needle-nozzle combinations
  • Well balanced & light weight gun Large fluid passage for improved air flow atomization
  • Finish-standard buffed/blue anodized
  • Air flow controls on gun body for ease of operation
  • Options of nylon and SS gravity cups Air pressure control valve (optional)Gun can be supplemented by a fine turned air inlet control regulator at the base of the gun
  • Removable air cap & baffle extends gun body service life
  • Ball and cone type design for consistent centering and sealing
  • A choice for air cap with standard tip and needle combination in mild steel and stainless steel of 1.1, 1.4 and 1.8 mm sizes
Specifications
  • Air inlet : 1/4" BSP(M)
  • Fluid inlet : 3/8" BSP(M)
Types of painting equipment
  • Trio Sprayfinish TM Conventional
  • Trio Ecofinish Conventional
  • Trio Sprayfinish HVLP
  • Trio Autofinish
  • Trio Sprayfinish
  • Trio Air Motors
Other Information
  • Port of Dispatch : KOLKATA
  • Delivery Time : 5 To 10 Days
  •

Specifications
Tank Capacity 9 Ltr 22 Ltr 45 Ltr
Max Working Pressure 8 Bar 8 Bar 8 Bar
Fluid Outlet 3/8 BSP 3/8 BSP 3/8BSP
Air Inlet 1/4 BSP 1/4 BSP 1/4 BSP
Inside Dia 190 mm 340 mm 340 mm
Inside Height 410 mm 410 mm 650 mm
Overall Height 710 mm 800 mm 1070 mm
Overall Width 320 mm 450 mm 450 mm
Weight 8 kg 17 kg 22 kg
Head Gasket Epdm Epdm Epdm
